Instrument

LARGE
Langley Aerosol Research Group Experiment

The Langley Aerosol Research Group Experiment (LARGE) is an in situ airborne instrument suite that measures aerosol and cloud microphysical and optical properties such as size distribution, number concentration, and scattering and absorption coefficient. LARGE consists of multiple instruments including the Ultra-High Sensitivity Aerosol Spectrometer (UHSAS), Particle-Into-Liquid Sampler (PILS), Particle Soot Absorption Photometer (PSAP), Cloud and Aerosol Spectrometer (CAS), Cloud Imaging Probe (CIP), and additional cloud and aerosol sensors. The LARGE instruments operate across the 450-700 nm wavelength range, can detect particles in the size range between 0.003-20μm, and have a measurement frequency of 1 Hz. It is typically used for airborne measurements, but it also has capability to deployed on ground-based platforms such as vehicles.

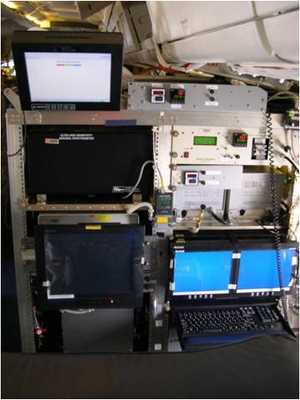

Image of the LARGE instrument suite
NASA's DC-8 flying laboratory passes Antarctica's tallest peak, Mount Vinson, on Oct. 22, 2012, during a flight over the continent to measure changes in the massive ice sheet and sea ice. Credit: NASA/Michael Studinger (Photography courtesy NASA Images)

Instrument Details

Multi
Earth Science > Atmosphere > Aerosols > Aerosol Optical Depth/thickness
Earth Science > Atmosphere > Aerosols > Aerosol Extinction
Earth Science > Atmosphere > Aerosols > Aerosol Particle Properties
Earth Science > Atmosphere > Clouds > Cloud Microphysics > Cloud Condensation Nuclei
Earth Science > Atmosphere > Clouds
Earth Science > Atmosphere > Aerosols
Earth Science > Atmosphere > Clouds > Cloud Microphysics > Cloud Droplet Concentration/size
Earth Science > Atmosphere > Clouds > Cloud Microphysics
Earth Science > Atmosphere > Clouds > Cloud Microphysics > Cloud Optical Depth/thickness
Troposphere
1 Hz
Point
429-667 THz
Currently unavailble

Filter data products from this instrument by specific campaigns, platforms, or formats.

Campaigns
CAMPAIGNS
Platforms
PLATFORMS
Formats
FORMATS
External Linkhttp://dx.doi.org/10.5067/GRIP/LARGE/DATA201
