Instrument

2D-S
2D-Stereo Particle Probe

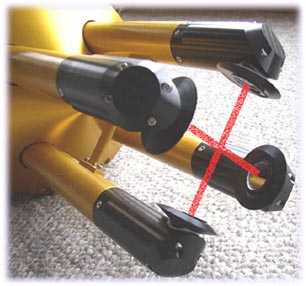

The 2D-Stereo Particle Probe (2D-S) is an in situ airborne optical imaging probe developed by SPEC Inc. The 2D-S uses two diode laser beams to produce stereo cloud particle images through linear array shadowing. Through the imagery, cloud particle size distribution, particle number concentration, and ice/liquid water content can be determined. It has a resolution of 10 µm and can measure hydrometeors in the 25-1280 µm range.

NASA's DC-8 flying laboratory passes Antarctica's tallest peak, Mount Vinson, on Oct. 22, 2012, during a flight over the continent to measure changes in the massive ice sheet and sea ice. Credit: NASA/Michael Studinger (Photography courtesy NASA Images)

Overview

Instrument Details

Measurement Type

Optical/Photon

Measurement/Variables

Earth Science > Atmosphere > Clouds > Cloud Microphysics > Particle Size Distribution

Earth Science > Atmosphere > Aerosols > Aerosol Extinction

Earth Science > Atmosphere > Aerosols

Earth Science > Atmosphere > Aerosols > Aerosol Particle Properties

Earth Science > Atmosphere > Clouds > Cloud Microphysics

Earth Science > Atmosphere > Clouds

Vertical Measurement Regions

Troposphere

Temporal Resolution

1 s

Spatial Resolution

10 μm

Measurement Frequency

N/A

Calibration Details

https://www.arm.gov/publications/tech_reports/handbooks/doe-sc-arm-tr-233.pdf

Online Information

https://airbornescience.nasa.gov/instrument/2DS

Lead Investigator
Sarah Woods, Paul Lawson
Technical Contact
Sarah Woods
Instrument Maker
SPEC Inc.
Funding Source
U.S. Navy Office for Naval Research Center for Interdisciplinary Remotely Piloted Aircraft Studies (CIRPAS)
